Relay Electrical Endurance Test Bench IEC 61810-1:2015 Compliant 3~60 Cycles/Min 3 Test Stations

Información detallada

Place of Origin:

china

Certificación:

Calibration certificate(cost additional)

Packaging Details:

Plywood

Descripción de producto

Product Introduction

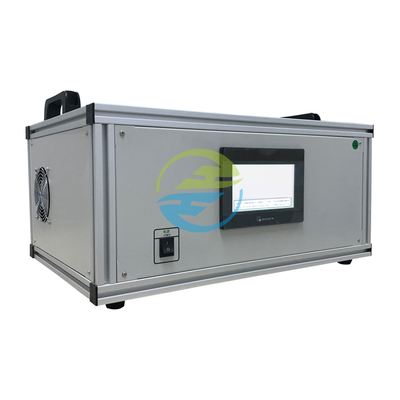

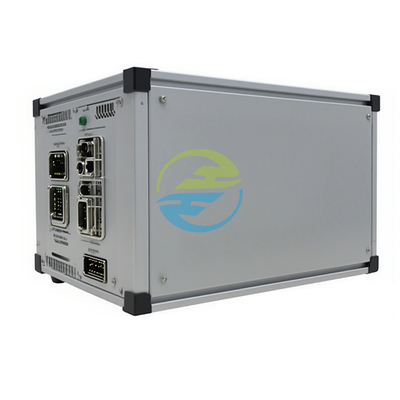

Product Description: The hcrtb-007 Relay Electrical Endurance Test Bench is a high-precision testing equipment designed for reliable relay performance evaluation. It adopts a PLC control system and a 7-inch color touchscreen, enabling intuitive parameter setting and real-time monitoring. The device generates pulse signals via PLC to drive relays through a driver circuit, realizing automated testing with minimal manual intervention.
Product Purpose: Specifically developed for relay contact electrical endurance testing, it is widely used in electronics and electrical manufacturing industries to assess the service life and reliability of relay contacts. It requires matching with the 82XX series multi-channel AC adjustable load platform for comprehensive testing.

Product Highlights

International Standard Compliance: Built according to IEC 61810-1:2015, ensuring authoritative and comparable test data.
Intelligent Automation: PLC control + touchscreen operation simplifies parameter adjustment; automatic monitoring of contact and coil action consistency reduces human errors.
Efficient Testing: 3 test stations with 12 detection channels (3×2×2) support simultaneous testing, significantly improving work efficiency.
Flexible Adaptability: Adjustable coil power supply (DC 0~60Vdc / AC 6~250Vac) and customizable settings (e.g., pass/fail criteria) meet diverse testing needs.
Reliable Data Recording: Automatically stops testing for unqualified samples and records data, ensuring traceability of test results.

International Reference Standards

Standard: IEC 61810-1:2015 Low-voltage switchgear and controlgear - Part 1: General rules
Details: This standard specifies general requirements, test methods, and performance criteria for low-voltage switchgear and controlgear. The hcrtb-007 is designed in accordance with its provisions, ensuring that relay electrical endurance tests are conducted under unified technical specifications, guaranteeing the comparability and credibility of results.

Technical Parameters

Category	Specifications
Input Characteristics	- Input voltage: AC 220V±10% - Input frequency: 50Hz/60Hz - Operating environment: Temperature 10℃~40℃, Humidity <75％RH - Power fuse: 4A
Coil Power Supply	- DC: 0~60Vdc, 1A, Voltage accuracy: ±(3％+1 digit) - AC: 6~250Vac, 500VA, Voltage accuracy: ±(3％+1 digit)
Action & Counting	- Action speed: 3~60 cycles/min, Accuracy: ±1% - On-off duty cycle (normally open): 10%~90%, Error: ±1% - Coil operation count: 0~999999 times, Accuracy: ±1% - Mechanical action count: 0~999999 times (external signal input)
Detection Parameters	- Test stations: 3 (each with 2 changeover contacts, synchronized) - Detection channels: 12 (3×2×2) - Contact load voltage: AC 100~300V, DC 20~100V - Contact action count: 0~999999 times (12 groups) - Detection timing: Last 1/4 cycle of coil energization/release time - Pass criteria: ≤5 failures (adjustable 0~999 times; 999 = no judgment)
Physical Parameters	- Dimensions: 650(W)×460(D)×360(H) mm - Weight: Approx. 30kg
